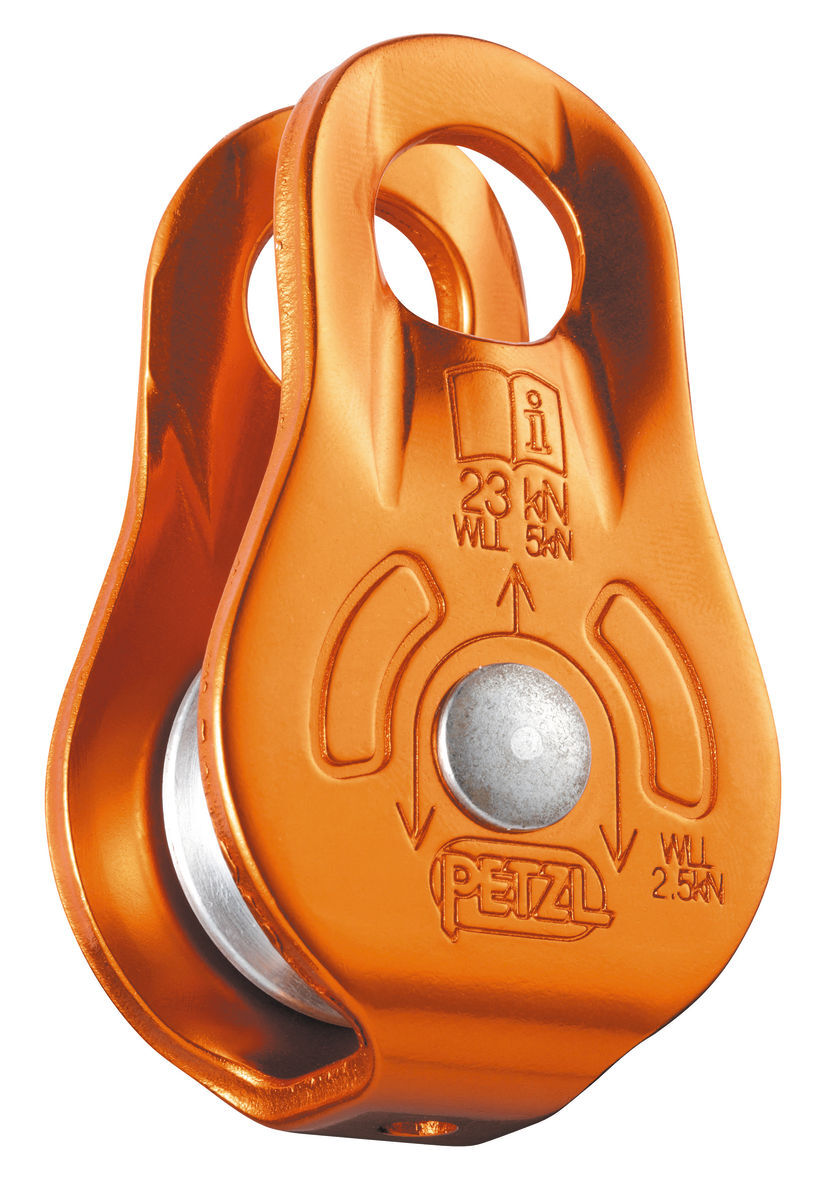

Petzl Fixe

Pulley with fixed side plates

The FIXE pulley is lightweight, compact, and quick to install on the rope. It offers a good balance between weight and strength.

Features:

• Lightweight, compact pulley
• Designed for hauling systems and deviations
• Fixed side plates allow quick installation and coupling with a rope clamp
• Sheave mounted on self-lubricating bushings for efficiency

Specifications:

• Material(s): aluminium side plates, aluminium sheave
• Certification(s): CE EN 12278, UIAA
• Weight: 90g
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave type: Self-lubricating bushings
• Sheave diameter: 21 mm
• Efficiency: 71 %
• Working load: on one rope strand: 2.5 kN
• Working load: 5 kN
• Breaking strength: 23 kN
