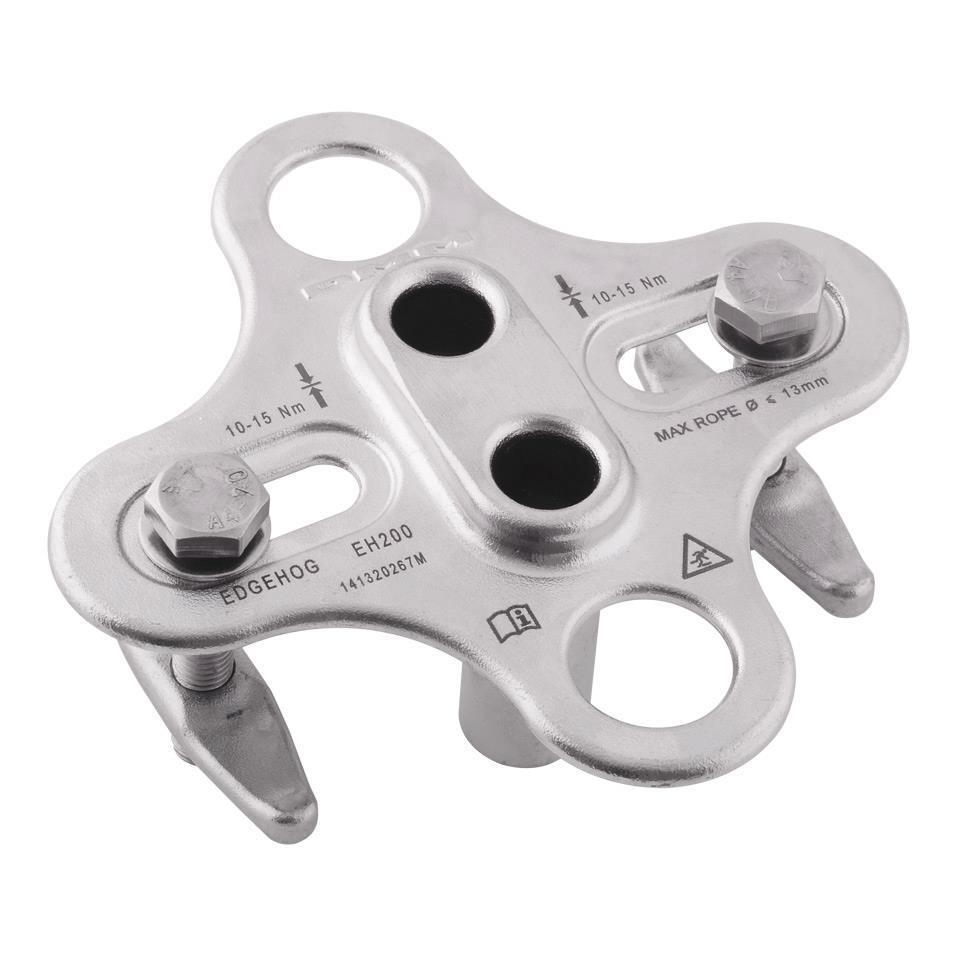

DMM Edgehog

Designed for use in rope access, but applicable in any situation where ropes run through gratings.

The Edgehog fits through deck grating (commonly known as Kennedy Grating) which is found in many industrial situations such as oil rigs, chemical plants, refineries etc.

Made from marine grade 316 stainless steel, the Edgehog is a durable and robust solution to the difficulties involved in running ropes through decking.

Features:

Two rope slots with rounded, rope friendly radii
Marine grade stainless steel for enhanced corrosion resistance in offshore environments
Low profile to minimise trip hazard
Fixation bolts with adjustments for different grating sizes (17mm spanner required)
Maximum rope diameter: 13mm
Clip-in point for transportation
Minimum grating hole size: 24 x 58mm
Maximum grating depth: 45mm

Specifications:
